Вентилятор осевой РОСА-300
Монтажная опора (МОП) является дополнительным элементом и в комплект поставки не входит.
Описание
- Осевые вентиляторы обладающие высокой эффективностью и надежностью при компактных размерах
- Предназначены для общеобменной вентиляции
- Высокая надежность и эффективность при компактных размерах
Конструктив
- Направление потока:
- IW - от колеса на двигатель, MW - от двигателя на колесо
- Типы корпуса: 10, 20, 30
- Материал корпуса оцинкованная сталь
- Рабочее колесо – осевая крыльчатка с лопатками из усиленного стекловолокном полиамида
Двигатель
- Трехфазный асинхронный электродвигатель
- Степень защиты электродвигателя не ниже IP 54
Условия эксплуатации
- Климатическое исполнение по ГОСТ 15150-69: У1 или У2 (для эксплуатации на открытом воздухе или под навесом)
- Температура окружающей среды от -45°С до +40°С
- Общепромышленное (О) исполнение
- Температура перемещаемой среды от -45°С до +40°С
- Перемещаемая среда не должна содержать:
- пары и газы с агрессивностью к металлам, покрытиям и изоляции выше агрессивности воздуха

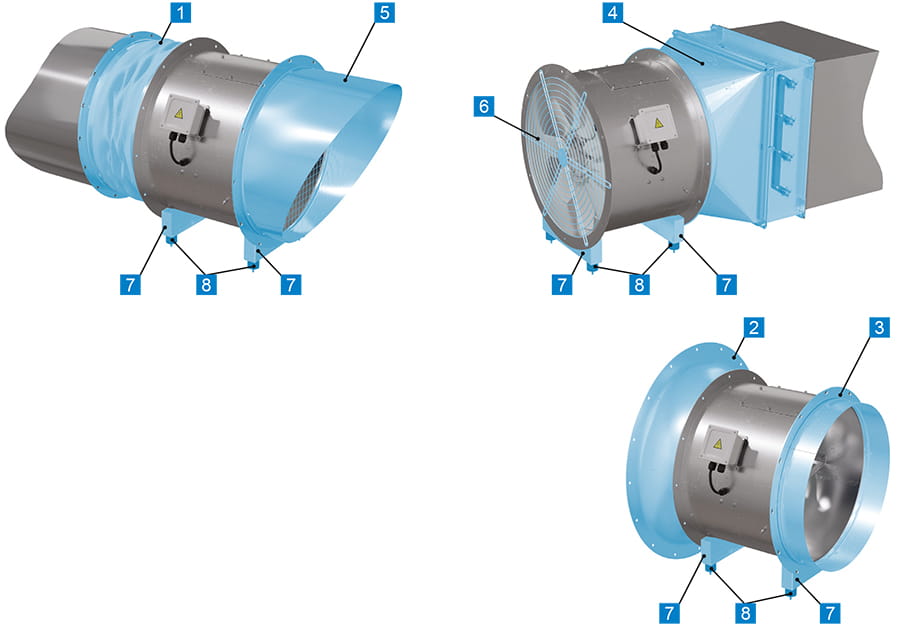

Дополнительная комплектация
1 - Вставка гибкая ВГК-РОСА
2 - Входной коллектор осевой ВКО-РОСА
3 - Переходник РОСА
4 - Клапан лепестковый КЛ-РОСА
5 - Козырек РОСА
6 - Решетка защитная БАСКЕТ-РОСА
7 - Монтажная опора МОП
8 - Виброизоляторы
* Дополнительные комплектующие в комплект поставки не входят.
Типы корпусов вентиляторов
Полная информация о вентиляторах РОСА-300 в электронном pdf-каталоге по ссылке во вкладке "Характеристики".
Габаритные и присоединительные размеры вентиляторов РОСА-300 с типом корпуса 10
|
№ вент. |
Наименование |
L, мм |
D, мм |
D1, мм |
D2, мм |
m, отв |
|
4,0 |
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/06-А/0,12/1500/220-380/1-У2 |
330 |
400 |
436 |
460 |
8 |
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/14-А/0,18/1500/220-380/1-У2 |
330 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/18-А/0,25/1500/220-380/1-У2 |
330 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/22-А/0,37/1500/220-380/1-У2 |
330 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/73-А/0,55/3000/220-380/1-У2 |
330 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/77-А/0,75/3000/220-380/1-У2 |
380 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/81-А/1,1/3000/220-380/1-У2 |
380 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/13-А/1,5/3000/220-380/1-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/17-А/2,2/3000/220-380/1-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
4,5 |
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/38-А/0,18/1500/220-380/1-У2 |
330 |
450 |
486 |
510 |
8 |
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/46-А/0,25/1500/220-380/1-У2 |
330 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/18-А/0,37/1500/220-380/1-У2 |
330 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/70-А/0,55/1500/220-380/1-У2 |
380 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/73-А/0,75/3000/220-380/1-У2 |
380 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/77-А/1,1/3000/220-380/1-У2 |
380 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/37-А/1,5/3000/220-380/1-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/85-А/2,2/3000/220-380/1-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/61-А/3,0/3000/220-380/1-У2 |
515 |
450 |
486 |
510 |
8 |
|
|
5,0 |
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/38-А/0,25/1500/220-380/1-У2 |
380 |
500 |
536 |
560 |
12 |
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/14-А/0,37/1500/220-380/1-У2 |
380 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/18-А/0,55/1500/220-380/1-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/25-А/0,75/3000/220-380/1-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/73-А/1,1/3000/220-380/1-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/77-А/1,5/3000/220-380/1-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/81-А/2,2/3000/220-380/1-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/09-А/3,0/3000/220-380/1-У2 |
515 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/13-А/4,0/3000/220-380/1-У2 |
515 |
500 |
536 |
560 |
12 |
|
|
5,6 |
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/50-А/0,37/1500/220-380/1-У2 |
380 |
560 |
620 |
660 |
12 |
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/58-А/0,55/1500/220-380/1-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/62-А/0,75/1500/220-380/1-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/25-А/1,1/3000/220-380/1-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/73-А/1,5/3000/220-380/1-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/77-А/2,2/3000/220-380/1-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/81-А/3,0/3000/220-380/1-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/09-А/4,0/3000/220-380/1-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/13-А/5,5/3000/220-380/1-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/17-А/7,5/3000/220-380/1-У2 |
630 |
560 |
620 |
660 |
12 |
|
|
6,3 |
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/78-А/0,55/1500/220-380/1-У2 |
440 |
630 |
690 |
730 |
12 |
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/82-А/0,75/1500/220-380/1-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/86-А/1,1/1500/220-380/1-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/90-А/1,5/1500/220-380/1-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/97-А/2,2/3000/220-380/1-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/101-А/3,0/3000/220-380/1-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/57-А/4,0/3000/220-380/1-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/317-А/5,5/3000/220-380/1-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/305-А/7,5/3000/220-380/1-У2 |
630 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/85-А/11,0/3000/380-660/1-У2 |
630 |
630 |
690 |
730 |
12 |
|
|
7,1 |
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/74-А/0,75/1500/220-380/1-У2 |
440 |
710 |
770 |
810 |
16 |
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/82-А/1,1/1500/220-380/1-У2 |
440 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/182-А/1,5/1500/220-380/1-У2 |
440 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/90-А/2,2/1500/220-380/1-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/94-А/3,0/1500/220-380/1-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/97-А/4,0/3000/220-380/1-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/101-А/5,5/3000/220-380/1-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/77-А/7,5/3000/220-380/1-У2 |
630 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/81-А/11,0/3000/380-660/1-У2 |
630 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/181-А/15,0/3000/380-660/1-У2 |
820 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/201-А/18,5/3000/380-660/1-У2 |
820 |
710 |
770 |
810 |
16 |
|
|
8,0 |
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/30-А/1,1/1500/220-380/1-У2 |
440 |
800 |
860 |
900 |
16 |
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/34-А/1,5/1500/220-380/1-У2 |
440 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/38-А/2,2/1500/220-380/1-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/42-А/3,0/1500/220-380/1-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/46-А/4,0/1500/220-380/1-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/22-А/5,5/1500/220-380/1-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/77-А/7,5/3000/220-380/1-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/81-А/11,0/3000/380-660/1-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/85-А/15,0/3000/380-660/1-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/125-А/18,5/3000/380-660/1-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/89-А/22,0/3000/380-660/1-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
9,0 |
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/146-А/1,5/1500/220-380/1-У2 |
440 |
900 |
960 |
1035 |
16 |
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/150-А/2,2/1500/220-380/1-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/410-А/3,0/1500/220-380/1-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/414-А/4,0/1500/220-380/1-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/158-А/5,5/1500/220-380/1-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/162-А/7,5/1500/380-660/1-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/22-А/11,0/1500/380-660/1-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/401-А/15,0/3000/380-660/1-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/177-А/18,5/3000/380-660/1-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/405-А/22,0/3000/380-660/1-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/185-А/30,0/3000/380-660/1-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
10,0 |
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/122-А/3,0/1500/220-380/1-У2 |
515 |
1000 |
1070 |
1135 |
16 |
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/126-А/4,0/1500/220-380/1-У2 |
515 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/130-А/5,5/1500/220-380/1-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/134-А/7,5/1500/380-660/1-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/142-А/11,0/1500/380-660/1-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/86-А/15,0/1500/380-660/1-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/90-А/18,5/1500/380-660/1-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/94-А/22,0/1500/380-660/1-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/230-А/30,0/1500/380-660/1-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
11,2 |
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/123-А/3,0/1000/220-380/1-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/127-А/4,0/1000/220-380/1-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/15-А/5,5/1000/380-660/1-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/30-А/7,5/1500/380-660/1-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/122-А/11,0/1500/380-660/1-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/126-А/15,0/1500/380-660/1-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/226-А/18,5/1500/380-660/1-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/134-А/22,0/1500/380-660/1-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/230-А/30,0/1500/380-660/1-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/234-А/37,0/1500/380-660/1-У2 |
950 |
1120 |
1195 |
1255 |
16 |
|
|
12,5 |
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/55-А/3,0/1000/220-380/1-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/59-А/4,0/1000/220-380/1-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/63-А/5,5/1000/380-660/1-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/67-А/7,5/1000/380-660/1-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/02-А/11,0/1500/380-660/1-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/30-А/15,0/1500/380-660/1-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/06-А/18,5/1500/380-660/1-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/82-А/22,0/1500/380-660/1-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/86-А/30,0/1500/380-660/1-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/14-А/37,0/1500/380-660/1-У2 |
950 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/18-А/45,0/1500/380-660/1-У2 |
950 |
1250 |
1320 |
1385 |
16 |
Габаритные и присоединительные размеры вентиляторов РОСА-300 с типом корпуса 20
|
№ вент. |
Наименование |
L, мм |
D, мм |
D1, мм |
D2, мм |
m, отв |
D3, мм |
D4, мм |
D5, мм |
n, отв |
|
4,0 |
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/06-А/0,12/1500/220-380/1-У2 |
430 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/14-А/0,18/1500/220-380/1-У2 |
430 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/18-А/0,25/1500/220-380/1-У2 |
430 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/22-А/0,37/1500/220-380/1-У2 |
430 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/73-А/0,55/3000/220-380/1-У2 |
430 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/77-А/0,75/3000/220-380/1-У2 |
480 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/81-А/1,1/3000/220-380/1-У2 |
480 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/13-А/1,5/3000/220-380/1-У2 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/20L-IW-4,0-O-R3L/4,0/PAG/17-А/2,2/3000/220-380/1-У2 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
4,5 |
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/38-А/0,18/1500/220-380/1-У2 |
442,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/46-А/0,25/1500/220-380/1-У2 |
442,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/18-А/0,37/1500/220-380/1-У2 |
442,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/70-А/0,55/1500/220-380/1-У2 |
492,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/73-А/0,75/3000/220-380/1-У2 |
492,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/77-А/1,1/3000/220-380/1-У2 |
492,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/37-А/1,5/3000/220-380/1-У2 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/85-А/2,2/3000/220-380/1-У2 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/20L-IW-4,5-O-R3L/4,5/PAG/61-А/3,0/3000/220-380/1-У2 |
627,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
5,0 |
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/38-А/0,25/1500/220-380/1-У2 |
505 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/14-А/0,37/1500/220-380/1-У2 |
505 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/18-А/0,55/1500/220-380/1-У2 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/25-А/0,75/3000/220-380/1-У2 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/73-А/1,1/3000/220-380/1-У2 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/77-А/1,5/3000/220-380/1-У2 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/81-А/2,2/3000/220-380/1-У2 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/09-А/3,0/3000/220-380/1-У2 |
640 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/20L-IW-5,0-O-R3L/5,0/PAG/13-А/4,0/3000/220-380/1-У2 |
640 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
5,6 |
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/50-А/0,37/1500/220-380/1-У2 |
520 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/58-А/0,55/1500/220-380/1-У2 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/62-А/0,75/1500/220-380/1-У2 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/25-А/1,1/3000/220-380/1-У2 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/73-А/1,5/3000/220-380/1-У2 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/77-А/2,2/3000/220-380/1-У2 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/81-А/3,0/3000/220-380/1-У2 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/09-А/4,0/3000/220-380/1-У2 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/13-А/5,5/3000/220-380/1-У2 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/20L-IW-5,6-O-R3L/5,6/PAG/17-А/7,5/3000/220-380/1-У2 |
770 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
6,3 |
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/78-А/0,55/1500/220-380/1-У2 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/82-А/0,75/1500/220-380/1-У2 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/86-А/1,1/1500/220-380/1-У2 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/90-А/1,5/1500/220-380/1-У2 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/97-А/2,2/3000/220-380/1-У2 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/101-А/3,0/3000/220-380/1-У2 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/57-А/4,0/3000/220-380/1-У2 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/317-А/5,5/3000/220-380/1-У2 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/305-А/7,5/3000/220-380/1-У2 |
787,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/20L-IW-6,3-O-R4Z/6,3/PAG/85-А/11,0/3000/380-660/1-У2 |
787,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
7,1 |
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/74-А/0,75/1500/220-380/1-У2 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/82-А/1,1/1500/220-380/1-У2 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/182-А/1,5/1500/220-380/1-У2 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/90-А/2,2/1500/220-380/1-У2 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/94-А/3,0/1500/220-380/1-У2 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/97-А/4,0/3000/220-380/1-У2 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/101-А/5,5/3000/220-380/1-У2 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/77-А/7,5/3000/220-380/1-У2 |
807,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/81-А/11,0/3000/380-660/1-У2 |
807,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/181-А/15,0/3000/380-660/1-У2 |
997,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/20L-IW-7,1-O-R4Z/7,1/PAG/201-А/18,5/3000/380-660/1-У2 |
997,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
8,0 |
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/30-А/1,1/1500/220-380/1-У2 |
640 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/34-А/1,5/1500/220-380/1-У2 |
640 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/38-А/2,2/1500/220-380/1-У2 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/42-А/3,0/1500/220-380/1-У2 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/46-А/4,0/1500/220-380/1-У2 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/22-А/5,5/1500/220-380/1-У2 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/77-А/7,5/3000/220-380/1-У2 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/81-А/11,0/3000/380-660/1-У2 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/85-А/15,0/3000/380-660/1-У2 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/125-А/18,5/3000/380-660/1-У2 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/20L-IW-8,0-O-R4Z/8,0/PAG/89-А/22,0/3000/380-660/1-У2 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
9,0 |
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/146-А/1,5/1500/220-380/1-У2 |
665 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/150-А/2,2/1500/220-380/1-У2 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/410-А/3,0/1500/220-380/1-У2 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/414-А/4,0/1500/220-380/1-У2 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/158-А/5,5/1500/220-380/1-У2 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/162-А/7,5/1500/380-660/1-У2 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/22-А/11,0/1500/380-660/1-У2 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/401-А/15,0/3000/380-660/1-У2 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/177-А/18,5/3000/380-660/1-У2 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/405-А/22,0/3000/380-660/1-У2 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/20L-IW-9,0-O-R5Z/9,0/PAG/185-А/30,0/3000/380-660/1-У2 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
10,0 |
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/122-А/3,0/1500/220-380/1-У2 |
765 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/126-А/4,0/1500/220-380/1-У2 |
765 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/130-А/5,5/1500/220-380/1-У2 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/134-А/7,5/1500/380-660/1-У2 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/142-А/11,0/1500/380-660/1-У2 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/86-А/15,0/1500/380-660/1-У2 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/90-А/18,5/1500/380-660/1-У2 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/94-А/22,0/1500/380-660/1-У2 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/20L-IW-10,0-O-R5Z/10,0/PAG/230-А/30,0/1500/380-660/1-У2 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
11,2 |
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/123-А/3,0/1000/220-380/1-У2 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/127-А/4,0/1000/220-380/1-У2 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/15-А/5,5/1000/380-660/1-У2 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/30-А/7,5/1500/380-660/1-У2 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/122-А/11,0/1500/380-660/1-У2 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/126-А/15,0/1500/380-660/1-У2 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/226-А/18,5/1500/380-660/1-У2 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/134-А/22,0/1500/380-660/1-У2 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/230-А/30,0/1500/380-660/1-У2 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/20L-IW-11,2-O-R5Z/11,2/PAG/234-А/37,0/1500/380-660/1-У2 |
1230 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
12,5 |
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/55-А/3,0/1000/220-380/1-У2 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/59-А/4,0/1000/220-380/1-У2 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/63-А/5,5/1000/380-660/1-У2 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/67-А/7,5/1000/380-660/1-У2 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/02-А/11,0/1500/380-660/1-У2 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/30-А/15,0/1500/380-660/1-У2 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/06-А/18,5/1500/380-660/1-У2 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/82-А/22,0/1500/380-660/1-У2 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/86-А/30,0/1500/380-660/1-У2 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/14-А/37,0/1500/380-660/1-У2 |
1262,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/20L-IW-12,5-O-R5Z/12,5/PAG/18-А/45,0/1500/380-660/1-У2 |
1262,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
Габаритные и присоединительные размеры вентиляторов РОСА-300 с типом корпуса 30
|
№ вент. |
Наименование |
L, мм |
D |
D3, мм |
D4, мм |
D5, мм |
n, отв |
|
4,0 |
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/06-А/0,12/1500/220-380/1-У2 |
590 |
400 |
500 |
536 |
560 |
12 |
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/14-А/0,18/1500/220-380/1-У2 |
590 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/18-А/0,25/1500/220-380/1-У2 |
590 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/22-А/0,37/1500/220-380/1-У2 |
590 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/73-А/0,55/3000/220-380/1-У2 |
590 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/77-А/0,75/3000/220-380/1-У2 |
640 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/81-А/1,1/3000/220-380/1-У2 |
640 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/13-А/1,5/3000/220-380/1-У2 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-300/30L-IW-4,0-O-R3L/4,0/PAG/17-А/2,2/3000/220-380/1-У2 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
4,5 |
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/38-А/0,18/1500/220-380/1-У2 |
622,5 |
450 |
560 |
620 |
660 |
12 |
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/46-А/0,25/1500/220-380/1-У2 |
622,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/18-А/0,37/1500/220-380/1-У2 |
622,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/70-А/0,55/1500/220-380/1-У2 |
672,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/73-А/0,75/3000/220-380/1-У2 |
672,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/77-А/1,1/3000/220-380/1-У2 |
672,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/37-А/1,5/3000/220-380/1-У2 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/85-А/2,2/3000/220-380/1-У2 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-300/30L-IW-4,5-O-R3L/4,5/PAG/61-А/3,0/3000/220-380/1-У2 |
807,5 |
450 |
560 |
620 |
660 |
12 |
|
|
5,0 |
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/38-А/0,25/1500/220-380/1-У2 |
705 |
500 |
630 |
690 |
730 |
12 |
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/14-А/0,37/1500/220-380/1-У2 |
705 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/18-А/0,55/1500/220-380/1-У2 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/25-А/0,75/3000/220-380/1-У2 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/73-А/1,1/3000/220-380/1-У2 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/77-А/1,5/3000/220-380/1-У2 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/81-А/2,2/3000/220-380/1-У2 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/09-А/3,0/3000/220-380/1-У2 |
840 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-300/30L-IW-5,0-O-R3L/5,0/PAG/13-А/4,0/3000/220-380/1-У2 |
840 |
500 |
630 |
690 |
730 |
12 |
|
|
5,6 |
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/50-А/0,37/1500/220-380/1-У2 |
744 |
560 |
710 |
770 |
810 |
16 |
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/58-А/0,55/1500/220-380/1-У2 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/62-А/0,75/1500/220-380/1-У2 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/25-А/1,1/3000/220-380/1-У2 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/73-А/1,5/3000/220-380/1-У2 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/77-А/2,2/3000/220-380/1-У2 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/81-А/3,0/3000/220-380/1-У2 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/09-А/4,0/3000/220-380/1-У2 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/13-А/5,5/3000/220-380/1-У2 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-300/30L-IW-5,6-O-R3L/5,6/PAG/17-А/7,5/3000/220-380/1-У2 |
994 |
560 |
710 |
770 |
810 |
16 |
|
|
6,3 |
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/78-А/0,55/1500/220-380/1-У2 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/82-А/0,75/1500/220-380/1-У2 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/86-А/1,1/1500/220-380/1-У2 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/90-А/1,5/1500/220-380/1-У2 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/97-А/2,2/3000/220-380/1-У2 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/101-А/3,0/3000/220-380/1-У2 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/57-А/4,0/3000/220-380/1-У2 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/317-А/5,5/3000/220-380/1-У2 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/305-А/7,5/3000/220-380/1-У2 |
1039,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-300/30L-IW-6,3-O-R4Z/6,3/PAG/85-А/11,0/3000/380-660/1-У2 |
1039,5 |
630 |
800 |
860 |
900 |
16 |
|
|
7,1 |
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/74-А/0,75/1500/220-380/1-У2 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/82-А/1,1/1500/220-380/1-У2 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/182-А/1,5/1500/220-380/1-У2 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/90-А/2,2/1500/220-380/1-У2 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/94-А/3,0/1500/220-380/1-У2 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/97-А/4,0/3000/220-380/1-У2 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/101-А/5,5/3000/220-380/1-У2 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/77-А/7,5/3000/220-380/1-У2 |
1091,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/81-А/11,0/3000/380-660/1-У2 |
1091,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/181-А/15,0/3000/380-660/1-У2 |
1281,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-300/30L-IW-7,1-O-R4Z/7,1/PAG/201-А/18,5/3000/380-660/1-У2 |
1281,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
8,0 |
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/30-А/1,1/1500/220-380/1-У2 |
960 |
800 |
1000 |
1070 |
1135 |
16 |
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/34-А/1,5/1500/220-380/1-У2 |
960 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/38-А/2,2/1500/220-380/1-У2 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/42-А/3,0/1500/220-380/1-У2 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/46-А/4,0/1500/220-380/1-У2 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/22-А/5,5/1500/220-380/1-У2 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/77-А/7,5/3000/220-380/1-У2 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/81-А/11,0/3000/380-660/1-У2 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/85-А/15,0/3000/380-660/1-У2 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/125-А/18,5/3000/380-660/1-У2 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-300/30L-IW-8,0-O-R4Z/8,0/PAG/89-А/22,0/3000/380-660/1-У2 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
9,0 |
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/146-А/1,5/1500/220-380/1-У2 |
1025 |
900 |
1120 |
1195 |
1255 |
16 |
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/150-А/2,2/1500/220-380/1-У2 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/410-А/3,0/1500/220-380/1-У2 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/414-А/4,0/1500/220-380/1-У2 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/158-А/5,5/1500/220-380/1-У2 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/162-А/7,5/1500/380-660/1-У2 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/22-А/11,0/1500/380-660/1-У2 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/401-А/15,0/3000/380-660/1-У2 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/177-А/18,5/3000/380-660/1-У2 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/405-А/22,0/3000/380-660/1-У2 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-300/30L-IW-9,0-O-R5Z/9,0/PAG/185-А/30,0/3000/380-660/1-У2 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
10,0 |
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/122-А/3,0/1500/220-380/1-У2 |
1165 |
1000 |
1250 |
1320 |
1385 |
16 |
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/126-А/4,0/1500/220-380/1-У2 |
1165 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/130-А/5,5/1500/220-380/1-У2 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/134-А/7,5/1500/380-660/1-У2 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/142-А/11,0/1500/380-660/1-У2 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/86-А/15,0/1500/380-660/1-У2 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/90-А/18,5/1500/380-660/1-У2 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/94-А/22,0/1500/380-660/1-У2 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-300/30L-IW-10,0-O-R5Z/10,0/PAG/230-А/30,0/1500/380-660/1-У2 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
11,2 |
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/123-А/3,0/1000/220-380/1-У2 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/127-А/4,0/1000/220-380/1-У2 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/15-А/5,5/1000/380-660/1-У2 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/30-А/7,5/1500/380-660/1-У2 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/122-А/11,0/1500/380-660/1-У2 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/126-А/15,0/1500/380-660/1-У2 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/226-А/18,5/1500/380-660/1-У2 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/134-А/22,0/1500/380-660/1-У2 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/230-А/30,0/1500/380-660/1-У2 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-300/30L-IW-11,2-O-R5Z/11,2/PAG/234-А/37,0/1500/380-660/1-У2 |
1678 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
12,5 |
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/55-А/3,0/1000/220-380/1-У2 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/59-А/4,0/1000/220-380/1-У2 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/63-А/5,5/1000/380-660/1-У2 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/67-А/7,5/1000/380-660/1-У2 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/02-А/11,0/1500/380-660/1-У2 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/30-А/15,0/1500/380-660/1-У2 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/06-А/18,5/1500/380-660/1-У2 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/82-А/22,0/1500/380-660/1-У2 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/86-А/30,0/1500/380-660/1-У2 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/14-А/37,0/1500/380-660/1-У2 |
1762,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-300/30L-IW-12,5-O-R5Z/12,5/PAG/18-А/45,0/1500/380-660/1-У2 |
1762,5 |
1250 |
1600 |
1680 |
1740 |
24 |
Технические
характеристики
|
№ вент. |
Наименование |
N, кВт |
n, об/мин |
Ток, А при 380В |
Масса, кг (тип корпуса) |
||
|
10 |
20 |
30 |
|||||
|
4,0 |
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/06-А/0,12/1500/220-380/1-У2 |
0,12 |
1310 |
0,49 |
17 |
22 |
27 |
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/14-А/0,18/1500/220-380/1-У2 |
0,18 |
1310 |
0,67 |
17 |
22 |
27 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/18-А/0,25/1500/220-380/1-У2 |
0,25 |
1340 |
0,87 |
18 |
23 |
28 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/22-А/0,37/1500/220-380/1-У2 |
0,37 |
1340 |
1,18 |
18 |
24 |
29 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/73-А/0,55/3000/220-380/1-У2 |
0,55 |
2790 |
1,38 |
19 |
24 |
29 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/77-А/0,75/3000/220-380/1-У2 |
0,75 |
2840 |
1,83 |
22 |
28 |
33 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/81-А/1,1/3000/220-380/1-У2 |
1,1 |
2840 |
2,63 |
23 |
28 |
33 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/13-А/1,5/3000/220-380/1-У2 |
1,5 |
2850 |
3,46 |
33 |
39 |
43 |
|
|
РОСА-300/10L-IW-4,0-O-R3L/4,0/PAG/17-А/2,2/3000/220-380/1-У2 |
2,2 |
2855 |
4,85 |
35 |
40 |
45 |
|
|
4,5 |
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/38-А/0,18/1500/220-380/1-У2 |
0,18 |
1310 |
0,67 |
18 |
25 |
32 |
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/46-А/0,25/1500/220-380/1-У2 |
0,25 |
1340 |
0,87 |
19 |
26 |
33 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/18-А/0,37/1500/220-380/1-У2 |
0,37 |
1340 |
1,18 |
19 |
26 |
33 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/70-А/0,55/1500/220-380/1-У2 |
0,55 |
1390 |
1,66 |
25 |
32 |
39 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/73-А/0,75/3000/220-380/1-У2 |
0,75 |
2840 |
1,83 |
24 |
31 |
38 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/77-А/1,1/3000/220-380/1-У2 |
1,1 |
2840 |
2,63 |
24 |
32 |
38 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/37-А/1,5/3000/220-380/1-У2 |
1,5 |
2850 |
3,46 |
34 |
42 |
49 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/85-А/2,2/3000/220-380/1-У2 |
2,2 |
2855 |
4,85 |
36 |
44 |
51 |
|
|
РОСА-300/10L-IW-4,5-O-R3L/4,5/PAG/61-А/3,0/3000/220-380/1-У2 |
3,0 |
2860 |
6,35 |
48 |
56 |
63 |
|
|
5,0 |
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/38-А/0,25/1500/220-380/1-У2 |
0,25 |
1340 |
0,87 |
21 |
30 |
39 |
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/14-А/0,37/1500/220-380/1-У2 |
0,37 |
1340 |
1,18 |
21 |
30 |
39 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/18-А/0,55/1500/220-380/1-У2 |
0,55 |
1390 |
1,66 |
26 |
36 |
45 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/25-А/0,75/3000/220-380/1-У2 |
0,75 |
2840 |
1,83 |
25 |
35 |
44 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/73-А/1,1/3000/220-380/1-У2 |
1,1 |
2840 |
2,63 |
27 |
36 |
45 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/77-А/1,5/3000/220-380/1-У2 |
1,5 |
2850 |
3,46 |
36 |
45 |
54 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/81-А/2,2/3000/220-380/1-У2 |
2,2 |
2855 |
4,85 |
37 |
46 |
55 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/09-А/3,0/3000/220-380/1-У2 |
3,0 |
2860 |
6,35 |
48 |
58 |
67 |
|
|
РОСА-300/10L-IW-5,0-O-R3L/5,0/PAG/13-А/4,0/3000/220-380/1-У2 |
4,0 |
2880 |
8,2 |
53 |
62 |
72 |
|
|
5,6 |
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/50-А/0,37/1500/220-380/1-У2 |
0,37 |
1340 |
1,18 |
25 |
35 |
45 |
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/58-А/0,55/1500/220-380/1-У2 |
0,55 |
1390 |
1,66 |
30 |
41 |
50 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/62-А/0,75/1500/220-380/1-У2 |
0,75 |
1390 |
2,11 |
30 |
41 |
50 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/25-А/1,1/3000/220-380/1-У2 |
1,1 |
2840 |
2,63 |
29 |
40 |
50 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/73-А/1,5/3000/220-380/1-У2 |
1,5 |
2850 |
3,46 |
39 |
49 |
59 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/77-А/2,2/3000/220-380/1-У2 |
2,2 |
2855 |
4,85 |
40 |
51 |
60 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/81-А/3,0/3000/220-380/1-У2 |
3,0 |
2860 |
6,35 |
52 |
62 |
72 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/09-А/4,0/3000/220-380/1-У2 |
4,0 |
2880 |
8,2 |
56 |
67 |
77 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/13-А/5,5/3000/220-380/1-У2 |
5,5 |
2900 |
11,1 |
64 |
75 |
85 |
|
|
РОСА-300/10L-IW-5,6-O-R3L/5,6/PAG/17-А/7,5/3000/220-380/1-У2 |
7,5 |
2895 |
14,9 |
79 |
91 |
100 |
|
|
6,3 |
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/78-А/0,55/1500/220-380/1-У2 |
0,55 |
1390 |
1,66 |
37 |
52 |
66 |
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/82-А/0,75/1500/220-380/1-У2 |
0,75 |
1390 |
2,11 |
37 |
52 |
66 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/86-А/1,1/1500/220-380/1-У2 |
1,1 |
1390 |
2,85 |
45 |
60 |
74 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/90-А/1,5/1500/220-380/1-У2 |
1,5 |
1400 |
3,72 |
48 |
62 |
76 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/97-А/2,2/3000/220-380/1-У2 |
2,2 |
2855 |
4,85 |
47 |
62 |
76 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/101-А/3,0/3000/220-380/1-У2 |
3,0 |
2860 |
6,35 |
60 |
74 |
88 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/57-А/4,0/3000/220-380/1-У2 |
4,0 |
2880 |
8,2 |
64 |
79 |
93 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/317-А/5,5/3000/220-380/1-У2 |
5,5 |
2900 |
11,1 |
72 |
86 |
101 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/305-А/7,5/3000/220-380/1-У2 |
7,5 |
2895 |
14,9 |
89 |
104 |
119 |
|
|
РОСА-300/10L-IW-6,3-O-R4Z/6,3/PAG/85-А/11,0/3000/380-660/1-У2 |
11,0 |
2900 |
21,86 |
112 |
128 |
142 |
|
|
7,1 |
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/74-А/0,75/1500/220-380/1-У2 |
0,75 |
1390 |
2,11 |
40 |
59 |
80 |
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/82-А/1,1/1500/220-380/1-У2 |
1,1 |
1390 |
2,85 |
48 |
67 |
88 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/182-А/1,5/1500/220-380/1-У2 |
1,5 |
1400 |
3,72 |
50 |
69 |
90 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/90-А/2,2/1500/220-380/1-У2 |
2,2 |
1410 |
5,3 |
61 |
81 |
106 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/94-А/3,0/1500/220-380/1-У2 |
3,0 |
1410 |
6,8 |
68 |
88 |
113 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/97-А/4,0/3000/220-380/1-У2 |
4,0 |
2880 |
8,21 |
67 |
87 |
112 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/101-А/5,5/3000/220-380/1-У2 |
5,5 |
2900 |
11,08 |
74 |
94 |
119 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/77-А/7,5/3000/220-380/1-У2 |
7,5 |
2895 |
14,9 |
92 |
113 |
138 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/81-А/11,0/3000/380-660/1-У2 |
11,0 |
2900 |
21,86 |
115 |
136 |
161 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/181-А/15,0/3000/380-660/1-У2 |
15,0 |
2930 |
30 |
163 |
186 |
211 |
|
|
РОСА-300/10L-IW-7,1-O-R4Z/7,1/PAG/201-А/18,5/3000/380-660/1-У2 |
18,5 |
2930 |
35,53 |
175 |
198 |
223 |
|
|
8,0 |
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/30-А/1,1/1500/220-380/1-У2 |
1,1 |
1390 |
2,85 |
52 |
75 |
87 |
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/34-А/1,5/1500/220-380/1-У2 |
1,5 |
1400 |
3,72 |
54 |
77 |
89 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/38-А/2,2/1500/220-380/1-У2 |
2,2 |
1410 |
5,3 |
66 |
90 |
100 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/42-А/3,0/1500/220-380/1-У2 |
3,0 |
1410 |
6,8 |
72 |
96 |
107 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/46-А/4,0/1500/220-380/1-У2 |
4,0 |
1435 |
8,8 |
77 |
101 |
112 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/22-А/5,5/1500/220-380/1-У2 |
5,5 |
1440 |
11,7 |
94 |
119 |
139 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/77-А/7,5/3000/220-380/1-У2 |
7,5 |
2895 |
14,9 |
96 |
121 |
141 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/81-А/11,0/3000/380-660/1-У2 |
11,0 |
2900 |
21,86 |
120 |
145 |
165 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/85-А/15,0/3000/380-660/1-У2 |
15,0 |
2930 |
30 |
169 |
196 |
216 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/125-А/18,5/3000/380-660/1-У2 |
18,5 |
2930 |
35,53 |
181 |
208 |
225 |
|
|
РОСА-300/10L-IW-8,0-O-R4Z/8,0/PAG/89-А/22,0/3000/380-660/1-У2 |
22,0 |
2940 |
42 |
226 |
253 |
280 |
|
|
9,0 |
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/146-А/1,5/1500/220-380/1-У2 |
1,5 |
1400 |
3,72 |
67 |
87 |
124 |
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/150-А/2,2/1500/220-380/1-У2 |
2,2 |
1410 |
5,3 |
80 |
100 |
137 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/410-А/3,0/1500/220-380/1-У2 |
3,0 |
1410 |
6,8 |
86 |
107 |
143 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/414-А/4,0/1500/220-380/1-У2 |
4,0 |
1435 |
8,8 |
91 |
112 |
148 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/158-А/5,5/1500/220-380/1-У2 |
5,5 |
1440 |
11,7 |
109 |
129 |
166 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/162-А/7,5/1500/380-660/1-У2 |
7,5 |
1450 |
15,71 |
137 |
158 |
195 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/22-А/11,0/1500/380-660/1-У2 |
11,0 |
1460 |
22,78 |
150 |
171 |
208 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/401-А/15,0/3000/380-660/1-У2 |
15,0 |
2930 |
30 |
188 |
209 |
246 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/177-А/18,5/3000/380-660/1-У2 |
18,5 |
2930 |
35,53 |
200 |
220 |
257 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/405-А/22,0/3000/380-660/1-У2 |
22,0 |
2940 |
42 |
244 |
265 |
302 |
|
|
РОСА-300/10L-IW-9,0-O-R5Z/9,0/PAG/185-А/30,0/3000/380-660/1-У2 |
30,0 |
2950 |
56 |
280 |
301 |
338 |
|
|
10,0 |
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/122-А/3,0/1500/220-380/1-У2 |
3,0 |
1410 |
6,8 |
92 |
118 |
162 |
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/126-А/4,0/1500/220-380/1-У2 |
4,0 |
1435 |
8,8 |
97 |
123 |
167 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/130-А/5,5/1500/220-380/1-У2 |
5,5 |
1440 |
11,7 |
116 |
141 |
185 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/134-А/7,5/1500/380-660/1-У2 |
7,5 |
1450 |
15,71 |
145 |
170 |
214 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/142-А/11,0/1500/380-660/1-У2 |
11,0 |
1460 |
22,78 |
156 |
181 |
226 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/86-А/15,0/1500/380-660/1-У2 |
15,0 |
1460 |
30,0 |
220 |
252 |
296 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/90-А/18,5/1500/380-660/1-У2 |
18,5 |
1470 |
36,3 |
240 |
272 |
316 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/94-А/22,0/1500/380-660/1-У2 |
22,0 |
1470 |
43,2 |
268 |
300 |
344 |
|
|
РОСА-300/10L-IW-10,0-O-R5Z/10,0/PAG/230-А/30,0/1500/380-660/1-У2 |
30,0 |
1470 |
57,6 |
298 |
330 |
374 |
|
|
11,2 |
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/123-А/3,0/1000/220-380/1-У2 |
3,0 |
960 |
7,64 |
125 |
157 |
213 |
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/127-А/4,0/1000/220-380/1-У2 |
4,0 |
960 |
9,75 |
130 |
161 |
218 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/15-А/5,5/1000/380-660/1-У2 |
5,5 |
960 |
12,9 |
151 |
182 |
238 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/30-А/7,5/1500/380-660/1-У2 |
7,5 |
1450 |
15,71 |
155 |
186 |
242 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/122-А/11,0/1500/380-660/1-У2 |
11,0 |
1460 |
22,78 |
168 |
199 |
255 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/126-А/15,0/1500/380-660/1-У2 |
15,0 |
1460 |
30,0 |
229 |
268 |
324 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/226-А/18,5/1500/380-660/1-У2 |
18,5 |
1470 |
36,3 |
254 |
290 |
346 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/134-А/22,0/1500/380-660/1-У2 |
22,0 |
1470 |
43,2 |
280 |
319 |
375 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/230-А/30,0/1500/380-660/1-У2 |
30,0 |
1470 |
57,6 |
308 |
347 |
403 |
|
|
РОСА-300/10L-IW-11,2-O-R5Z/11,2/PAG/234-А/37,0/1500/380-660/1-У2 |
37,0 |
1475 |
70,2 |
391 |
430 |
486 |
|
|
12,5 |
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/55-А/3,0/1000/220-380/1-У2 |
3,0 |
960 |
7,64 |
136 |
175 |
244 |
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/59-А/4,0/1000/220-380/1-У2 |
4,0 |
960 |
9,75 |
141 |
179 |
249 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/63-А/5,5/1000/380-660/1-У2 |
5,5 |
960 |
12,9 |
161 |
200 |
269 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/67-А/7,5/1000/380-660/1-У2 |
7,5 |
970 |
17,2 |
177 |
216 |
285 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/02-А/11,0/1500/380-660/1-У2 |
11,0 |
1460 |
22,78 |
181 |
219 |
289 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/30-А/15,0/1500/380-660/1-У2 |
15,0 |
1460 |
30,0 |
244 |
291 |
361 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/06-А/18,5/1500/380-660/1-У2 |
18,5 |
1470 |
36,3 |
266 |
313 |
382 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/82-А/22,0/1500/380-660/1-У2 |
22,0 |
1470 |
43,2 |
290 |
340 |
409 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/86-А/30,0/1500/380-660/1-У2 |
30,0 |
1470 |
57,6 |
319 |
368 |
437 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/14-А/37,0/1500/380-660/1-У2 |
37,0 |
1475 |
70,2 |
404 |
453 |
522 |
|
|
РОСА-300/10L-IW-12,5-O-R5Z/12,5/PAG/18-А/45,0/1500/380-660/1-У2 |
45,0 |
1475 |
86 |
432 |
481 |
550 |
|
Шумовые характеристки
|
№ вент. |
Наименование |
Уровень звуковой мощности, дБ в октавных полосах частот, Гц |
Общий, дБа |
|||||||
|
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|||
|
4,0 |
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/06-А/0,12/1500/220-380/1-У2 |
70 |
67 |
65 |
61 |
61 |
61 |
61 |
53 |
74 |
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/14-А/0,18/1500/220-380/1-У2 |
72 |
69 |
67 |
65 |
65 |
64 |
62 |
53 |
76 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/18-А/0,25/1500/220-380/1-У2 |
73 |
70 |
68 |
64 |
64 |
63 |
62 |
54 |
77 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/22-А/0,37/1500/220-380/1-У2 |
73 |
70 |
68 |
64 |
66 |
64 |
63 |
56 |
76 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/73-А/0,55/3000/220-380/1-У2 |
86 |
85 |
91 |
93 |
92 |
87 |
85 |
79 |
98 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/77-А/0,75/3000/220-380/1-У2 |
88 |
84 |
83 |
83 |
84 |
81 |
82 |
75 |
93 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/81-А/1,1/3000/220-380/1-У2 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
94 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/13-А/1,5/3000/220-380/1-У2 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
95 |
|
|
РОСА-300/10L-IW-4,0-О-R3L/4,0/PAG/17-А/2,2/3000/220-380/1-У2 |
90 |
87 |
85 |
81 |
81 |
80 |
79 |
71 |
93 |
|
|
4,5 |
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/38-А/0,18/1500/220-380/1-У2 |
72 |
69 |
67 |
63 |
63 |
63 |
63 |
55 |
76 |
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/46-А/0,25/1500/220-380/1-У2 |
76 |
73 |
71 |
68 |
69 |
67 |
67 |
62 |
80 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/18-А/0,37/1500/220-380/1-У2 |
77 |
74 |
72 |
68 |
68 |
67 |
65 |
57 |
80 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/70-А/0,55/1500/220-380/1-У2 |
77 |
74 |
72 |
69 |
69 |
68 |
67 |
59 |
81 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/73-А/0,75/3000/220-380/1-У2 |
86 |
87 |
93 |
95 |
92 |
86 |
85 |
79 |
99 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/77-А/1,1/3000/220-380/1-У2 |
90 |
86 |
85 |
85 |
86 |
83 |
84 |
77 |
95 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/37-А/1,5/3000/220-380/1-У2 |
89 |
86 |
84 |
80 |
80 |
80 |
80 |
72 |
93 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/85-А/2,2/3000/220-380/1-У2 |
91 |
88 |
86 |
82 |
82 |
82 |
82 |
74 |
94 |
|
|
РОСА-300/10L-IW-4,5-О-R3L/4,5/PAG/61-А/3,0/3000/220-380/1-У2 |
93 |
90 |
88 |
87 |
88 |
87 |
84 |
75 |
97 |
|
|
5,0 |
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/38-А/0,25/1500/220-380/1-У2 |
75 |
72 |
70 |
66 |
66 |
66 |
66 |
58 |
78 |
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/14-А/0,37/1500/220-380/1-У2 |
77 |
74 |
72 |
70 |
70 |
69 |
67 |
58 |
81 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/18-А/0,55/1500/220-380/1-У2 |
79 |
76 |
74 |
70 |
70 |
69 |
67 |
59 |
82 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/25-А/0,75/3000/220-380/1-У2 |
85 |
86 |
92 |
94 |
91 |
85 |
84 |
78 |
99 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/73-А/1,1/3000/220-380/1-У2 |
88 |
88 |
93 |
96 |
95 |
89 |
88 |
82 |
101 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/77-А/1,5/3000/220-380/1-У2 |
92 |
88 |
87 |
87 |
88 |
85 |
86 |
79 |
97 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/81-А/2,2/3000/220-380/1-У2 |
93 |
90 |
88 |
85 |
85 |
84 |
85 |
78 |
97 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/09-А/3,0/3000/220-380/1-У2 |
96 |
93 |
92 |
91 |
91 |
87 |
85 |
77 |
101 |
|
|
РОСА-300/10L-IW-5,0-О-R3L/5,0/PAG/13-А/4,0/3000/220-380/1-У2 |
94 |
91 |
89 |
87 |
87 |
86 |
84 |
75 |
98 |
|
|
5,6 |
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/50-А/0,37/1500/220-380/1-У2 |
75 |
86 |
84 |
85 |
82 |
77 |
75 |
69 |
91 |
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/58-А/0,55/1500/220-380/1-У2 |
79 |
81 |
85 |
82 |
82 |
78 |
75 |
67 |
90 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/62-А/0,75/1500/220-380/1-У2 |
82 |
79 |
77 |
76 |
77 |
76 |
73 |
64 |
86 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/25-А/1,1/3000/220-380/1-У2 |
87 |
88 |
94 |
96 |
93 |
87 |
86 |
80 |
100 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/73-А/1,5/3000/220-380/1-У2 |
90 |
89 |
95 |
97 |
96 |
91 |
89 |
83 |
102 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/77-А/2,2/3000/220-380/1-У2 |
94 |
90 |
89 |
89 |
90 |
87 |
88 |
81 |
99 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/81-А/3,0/3000/220-380/1-У2 |
94 |
91 |
89 |
86 |
86 |
85 |
86 |
79 |
98 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/09-А/4,0/3000/220-380/1-У2 |
98 |
95 |
94 |
93 |
93 |
89 |
87 |
79 |
102 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/13-А/5,5/3000/220-380/1-У2 |
96 |
93 |
91 |
89 |
89 |
88 |
86 |
77 |
100 |
|
|
РОСА-300/10L-IW-5,6-О-R3L/5,6/PAG/17-А/7,5/3000/220-380/1-У2 |
98 |
95 |
93 |
89 |
89 |
88 |
86 |
78 |
101 |
|
|
6,3 |
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/78-А/0,55/1500/220-380/1-У2 |
74 |
75 |
73 |
75 |
76 |
74 |
76 |
69 |
83 |
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/82-А/0,75/1500/220-380/1-У2 |
77 |
75 |
73 |
73 |
72 |
73 |
75 |
69 |
83 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/86-А/1,1/1500/220-380/1-У2 |
81 |
76 |
76 |
75 |
74 |
75 |
76 |
69 |
85 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/90-А/1,5/1500/220-380/1-У2 |
82 |
79 |
77 |
76 |
76 |
75 |
76 |
69 |
87 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/97-А/2,2/3000/220-380/1-У2 |
90 |
86 |
85 |
84 |
86 |
85 |
88 |
82 |
96 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/101-А/3,0/3000/220-380/1-У2 |
90 |
87 |
85 |
85 |
84 |
83 |
87 |
82 |
95 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/57-А/4,0/3000/220-380/1-У2 |
100 |
97 |
95 |
94 |
96 |
93 |
93 |
88 |
104 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/317-А/5,5/3000/220-380/1-У2 |
93 |
88 |
88 |
88 |
87 |
87 |
88 |
84 |
98 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/305-А/7,5/3000/220-380/1-У2 |
100 |
98 |
99 |
98 |
99 |
96 |
95 |
87 |
107 |
|
|
РОСА-300/10L-IW-6,3-О-R4Z/6,3/PAG/85-А/11,0/3000/380-660/1-У2 |
97 |
92 |
92 |
91 |
90 |
91 |
92 |
85 |
101 |
|
|
7,1 |
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/74-А/0,75/1500/220-380/1-У2 |
80 |
83 |
89 |
90 |
87 |
81 |
79 |
71 |
94 |
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/82-А/1,1/1500/220-380/1-У2 |
78 |
78 |
76 |
78 |
77 |
77 |
80 |
73 |
87 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/182-А/1,5/1500/220-380/1-У2 |
80 |
81 |
79 |
79 |
77 |
77 |
79 |
73 |
88 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/90-А/2,2/1500/220-380/1-У2 |
84 |
82 |
81 |
79 |
78 |
79 |
80 |
76 |
90 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/94-А/3,0/1500/220-380/1-У2 |
87 |
82 |
83 |
82 |
80 |
81 |
82 |
77 |
91 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/97-А/4,0/3000/220-380/1-У2 |
95 |
91 |
95 |
100 |
99 |
94 |
93 |
87 |
105 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/101-А/5,5/3000/220-380/1-У2 |
93 |
90 |
88 |
89 |
88 |
87 |
91 |
88 |
99 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/77-А/7,5/3000/220-380/1-У2 |
96 |
99 |
99 |
103 |
101 |
98 |
97 |
91 |
108 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/81-А/11,0/3000/380-660/1-У2 |
94 |
94 |
92 |
94 |
93 |
93 |
96 |
89 |
103 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/181-А/15,0/3000/380-660/1-У2 |
96 |
97 |
95 |
95 |
93 |
93 |
95 |
89 |
104 |
|
|
РОСА-300/10L-IW-7,1-О-R4Z/7,1/PAG/201-А/18,5/3000/380-660/1-У2 |
100 |
98 |
97 |
95 |
93 |
94 |
96 |
90 |
105 |
|
|
8,0 |
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/30-А/1,1/1500/220-380/1-У2 |
85 |
92 |
93 |
95 |
93 |
87 |
86 |
82 |
100 |
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/34-А/1,5/1500/220-380/1-У2 |
89 |
87 |
87 |
88 |
89 |
86 |
85 |
78 |
96 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/38-А/2,2/1500/220-380/1-У2 |
92 |
89 |
88 |
85 |
86 |
84 |
84 |
74 |
96 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/42-А/3,0/1500/220-380/1-У2 |
91 |
88 |
86 |
83 |
83 |
82 |
82 |
73 |
95 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/46-А/4,0/1500/220-380/1-У2 |
91 |
88 |
86 |
83 |
83 |
82 |
81 |
74 |
95 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/22-А/5,5/1500/220-380/1-У2 |
93 |
90 |
88 |
86 |
86 |
85 |
83 |
75 |
97 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/77-А/7,5/3000/220-380/1-У2 |
99 |
102 |
106 |
109 |
106 |
100 |
98 |
92 |
113 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/81-А/11,0/3000/380-660/1-У2 |
103 |
100 |
105 |
108 |
107 |
102 |
100 |
94 |
113 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/85-А/15,0/3000/380-660/1-У2 |
100 |
99 |
101 |
101 |
101 |
99 |
100 |
93 |
109 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/125-А/18,5/3000/380-660/1-У2 |
104 |
100 |
101 |
100 |
99 |
98 |
99 |
92 |
109 |
|
|
РОСА-300/10L-IW-8,0-О-R4Z/8,0/PAG/89-А/22,0/3000/380-660/1-У2 |
106 |
100 |
101 |
98 |
96 |
96 |
98 |
91 |
110 |
|
|
9,0 |
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/146-А/1,5/1500/220-380/1-У2 |
86 |
90 |
92 |
96 |
96 |
89 |
86 |
81 |
101 |
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/150-А/2,2/1500/220-380/1-У2 |
92 |
89 |
88 |
88 |
89 |
87 |
87 |
80 |
98 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/410-А/3,0/1500/220-380/1-У2 |
91 |
88 |
86 |
85 |
85 |
84 |
85 |
78 |
95 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/414-А/4,0/1500/220-380/1-У2 |
90 |
87 |
85 |
83 |
82 |
81 |
82 |
75 |
94 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/158-А/5,5/1500/220-380/1-У2 |
92 |
89 |
87 |
85 |
85 |
83 |
84 |
77 |
96 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/162-А/7,5/1500/380-660/1-У2 |
93 |
90 |
88 |
88 |
86 |
86 |
86 |
80 |
97 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/22-А/11,0/1500/380-660/1-У2 |
95 |
92 |
90 |
89 |
88 |
88 |
87 |
79 |
99 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/401-А/15,0/3000/380-660/1-У2 |
104 |
102 |
100 |
99 |
98 |
96 |
98 |
95 |
109 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/177-А/18,5/3000/380-660/1-У2 |
104 |
101 |
99 |
98 |
96 |
94 |
97 |
94 |
109 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/405-А/22,0/3000/380-660/1-У2 |
106 |
103 |
101 |
99 |
97 |
96 |
98 |
95 |
110 |
|
|
РОСА-300/10L-IW-9,0-О-R5Z/9,0/PAG/185-А/30,0/3000/380-660/1-У2 |
108 |
105 |
103 |
101 |
99 |
99 |
100 |
96 |
112 |
|
|
10,0 |
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/122-А/3,0/1500/220-380/1-У2 |
89 |
96 |
99 |
99 |
96 |
90 |
89 |
84 |
104 |
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/126-А/4,0/1500/220-380/1-У2 |
91 |
94 |
94 |
93 |
94 |
90 |
91 |
84 |
101 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/130-А/5,5/1500/220-380/1-У2 |
91 |
94 |
95 |
92 |
92 |
89 |
90 |
82 |
101 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/134-А/7,5/1500/380-660/1-У2 |
97 |
96 |
95 |
91 |
90 |
88 |
90 |
83 |
102 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/142-А/11,0/1500/380-660/1-У2 |
100 |
97 |
95 |
91 |
90 |
89 |
89 |
82 |
104 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/86-А/15,0/1500/380-660/1-У2 |
98 |
95 |
93 |
90 |
91 |
91 |
87 |
79 |
102 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/90-А/18,5/1500/380-660/1-У2 |
99 |
96 |
94 |
90 |
91 |
90 |
87 |
80 |
103 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/94-А/22,0/1500/380-660/1-У2 |
100 |
97 |
95 |
91 |
91 |
90 |
88 |
81 |
104 |
|
|
РОСА-300/10L-IW-10,0-О-R5Z/10,0/PAG/230-А/30,0/1500/380-660/1-У2 |
101 |
98 |
96 |
92 |
93 |
91 |
88 |
82 |
105 |
|
|
11,2 |
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/123-А/3,0/1000/220-380/1-У2 |
89 |
90 |
88 |
87 |
87 |
85 |
82 |
73 |
96 |
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/127-А/4,0/1000/220-380/1-У2 |
93 |
91 |
89 |
87 |
87 |
85 |
81 |
73 |
97 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/15-А/5,5/1000/380-660/1-У2 |
91 |
88 |
86 |
84 |
84 |
84 |
80 |
72 |
95 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/30-А/7,5/1500/380-660/1-У2 |
99 |
96 |
94 |
95 |
95 |
93 |
91 |
81 |
104 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/122-А/11,0/1500/380-660/1-У2 |
98 |
99 |
97 |
96 |
96 |
94 |
91 |
82 |
105 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/126-А/15,0/1500/380-660/1-У2 |
102 |
100 |
98 |
96 |
96 |
94 |
90 |
82 |
106 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/226-А/18,5/1500/380-660/1-У2 |
99 |
100 |
102 |
107 |
99 |
96 |
93 |
90 |
110 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/134-А/22,0/1500/380-660/1-У2 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
111 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/230-А/30,0/1500/380-660/1-У2 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-300/10L-IW-11,2-О-R5Z/11,2/PAG/234-А/37,0/1500/380-660/1-У2 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
12,5 |
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/55-А/3,0/1000/220-380/1-У2 |
90 |
86 |
85 |
83 |
84 |
83 |
81 |
72 |
94 |
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/59-А/4,0/1000/220-380/1-У2 |
88 |
85 |
83 |
81 |
81 |
81 |
79 |
71 |
92 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/63-А/5,5/1000/380-660/1-У2 |
90 |
87 |
85 |
83 |
83 |
83 |
80 |
73 |
94 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/67-А/7,5/1000/380-660/1-У2 |
93 |
90 |
88 |
85 |
85 |
84 |
83 |
75 |
96 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/02-А/11,0/1500/380-660/1-У2 |
94 |
95 |
97 |
102 |
94 |
91 |
88 |
85 |
105 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/30-А/15,0/1500/380-660/1-У2 |
102 |
99 |
97 |
96 |
97 |
95 |
91 |
82 |
106 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/06-А/18,5/1500/380-660/1-У2 |
98 |
99 |
101 |
106 |
98 |
95 |
92 |
89 |
109 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/82-А/22,0/1500/380-660/1-У2 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
110 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/86-А/30,0/1500/380-660/1-У2 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/14-А/37,0/1500/380-660/1-У2 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
РОСА-300/10L-IW-12,5-О-R5Z/12,5/PAG/18-А/45,0/1500/380-660/1-У2 |
104 |
105 |
107 |
112 |
104 |
101 |
98 |
95 |
115 |
|
Электрические схемы подключения вентиляторов в сеть 380 В
Не представленные в наличии модели доступны к поставке под заказ
Оповестить о поступлении
Всю необходимую информацию также можно получить по телефону «горячей линии»
+ 7 800 200 93 96или по телефону
+7 800 505 08 67 получить консультацию
